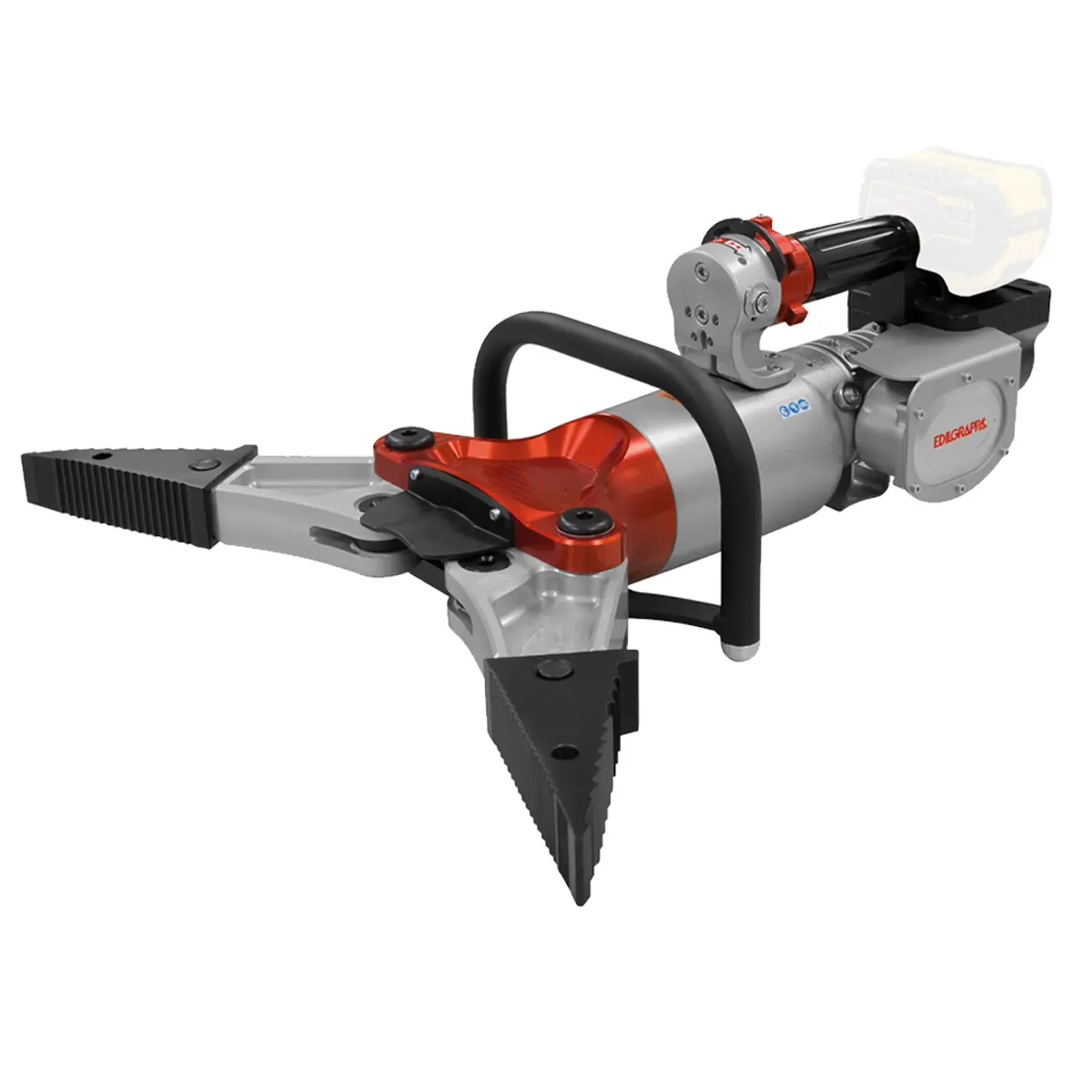

This spreader combines lightweight design with robust performance, making it an essential addition to any rescue team’s toolkit.
Features
- Lightweight and Powerful: Weighing only 21.5 kg, the DE625N-E delivers a formidable spreading force of 174 kN (17.7 tons), ensuring it can handle the toughest tasks with ease.
- Impressive Spreading Distance: With a maximum spreading distance of 625 mm, this tool is capable of addressing a wide range of extrication scenarios.
- High Performance: The spreader operates at a working pressure of 70 MPa (700 bar), providing consistent and reliable performance.
- Brushless Motor: Equipped with a 54V/60V brushless motor, the spreader ensures efficient and long-lasting operation.
- Compact Dimensions: When closed, the tool measures 787 x 282 x 244 mm, and when open, it measures 701 x 625 x 244 mm, making it easy to handle and store.
Performance Metrics
- Highest Spreading Force (HSF): 60.6 kN (6.2 tons)
- Lowest Spreading Force (LSF): 32.9 kN (3.4 tons)
- Highest Force (HPF): 46 kN (4.7 tons)
- Lowest Force (LPF): 26 kN (2.7 tons)
- Squeezing Force: 69 kN (7.0 tons)
Applications
The DE625N-E is ideal for urban search and rescue (USAR) operations, vehicle extrication, and other emergency scenarios. It complements other battery-powered hydraulic rescue equipment such as cutters, rams, combi-tools, and pedal cutters, providing a comprehensive solution for rescue professionals.
Certification and Compliance
- EN 13204 Classification: AS 45/625-19
- Certified Compliant with NFPA 1960 - Current Edition.
-
The DE625N-E Cordless Battery-Powered Spreader is a testament to Edilgrappa’s commitment to innovation and quality in rescue equipment. Its combination of power, portability, and precision makes it an invaluable asset for any rescue operation
- Dimensions (L x W x H): 31.0 in x 11.1 in x 9.6 in (787 mm x 282 mm x 244 mm)
- Weight (without battery): 47.4 lb (21.5 kg)
- Weight (with battery): 49.7 lb (22.5 kg)
- Max spreading distance: 24.6 in (625 mm)
- Max spreading force: 39,120 lb (174 kN)
- Highest spreading force (HSF): 13,620 lb (60.6 kN)
- Lowest spreading force (LSF): 7,410 lb (32.9 kN)
- Highest pulling force (HPF): 10,350 lb (46.0 kN)
- Lowest pulling force (LPF): 5,850 lb (26.0 kN)
- Protection rating: IP54
- Model: 150.03625
*Dimensions and weight without battery
Battery and charger not included
-
