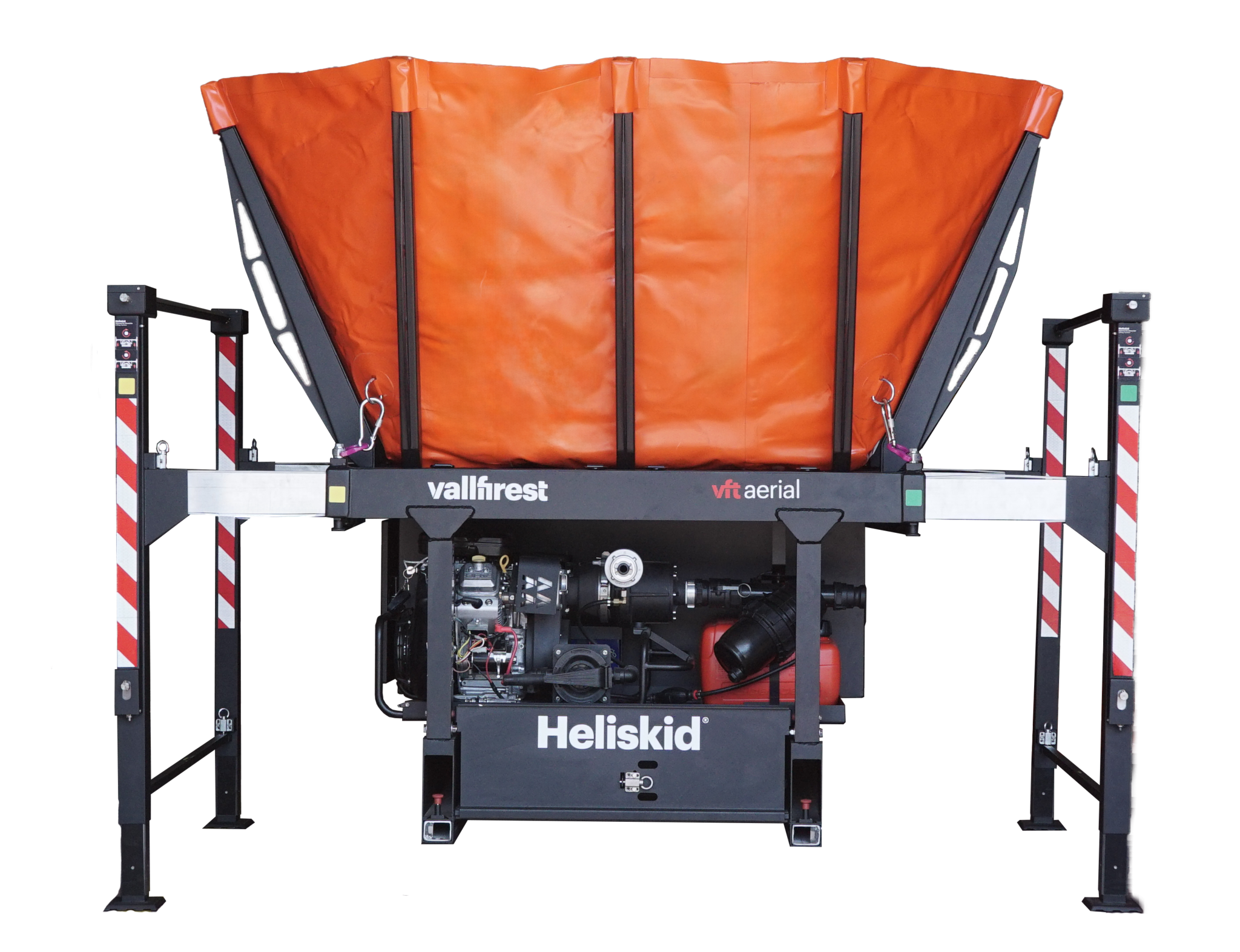

Heliskid technical specifications
Helitransportable structure
The main structure and structural tank arms are made of aluminum.
4 hoisting points for helitransport. ACP (Automatic-Center-Point) eyebolts compliant with DIN
EN 1677-1:2009-03 and DIN EN ISO 12100:2011-03
Total weight 415 kg without water l 3,415 kg with a full tank. | MMA: 750 kg.
3,000 l. canvas tank
Fold-down canvas with a tubular detachable structure for transportation in a cabinet.
Dimensions when open: 210 x 210 x 100 cm Dimensions when folded: 120 x 60 x 25 cm
Material: 1450 gr/m2 - thickness 1.2 mm - PES fabric with a PVC finish
Resistance: traction 3000/3000 N/50 mm | tear 250/250 N | temperature -30/+70ºC
Weight: 22 Kg including the carrying case
Fuel tank Gasoline tank made of HDPE, connected to the fire pump.
Equipped with a Mercury quick connect fuel line. Capacity: 12 l.
Cabinet
Drawer with an access door on both sides and key-lock close.
Designed to transport the tank, the structural arms and components for the
operation as well as the suction section, cranks and leg drive system drill holes.
Dimensions: 128x69x50 cm Capacity: 350 l
Hoisting and unloading legs
Stainless steel legs with a spindle system to be raised up to 1130 mm.
Detachable, they can be carried in the lower drawer.
Dimensions: Max. leg length: 2500 mm Min. leg length: 1370 mm Weight/leg: 22 Kg
Stabilization system
Made up of 4 hoisting legs + 4 extendable tubes on the base, operable with spring positioners.
Includes a level for visual inspections. The legs cannot be used to stabilize the structure
when the tank is full and the base is raised.
BH4-23 fire pump which combines a powerful Briggs and Stratton Vanguard V twin 23 HP
engine with a vft Speed Increaser and a VFT_4SP 4-phase centrifugal pump. Offers excellent
operation at high pressures and a great flow. This combination has the capacity for long-dis-
tance hose laying. It has a quick coupling system for the pump to be replaced as quickly as
possible in the event of a breakdown.
Dimensions: Length: 83 cm I Width: 49.5 cm I Height: 48 cm Weight: 78 Kg
Tensioned sling kit Equipped with 4 pickaxes, 4 slings and a hammer for stabilization if any additional fixing points
are necessary.

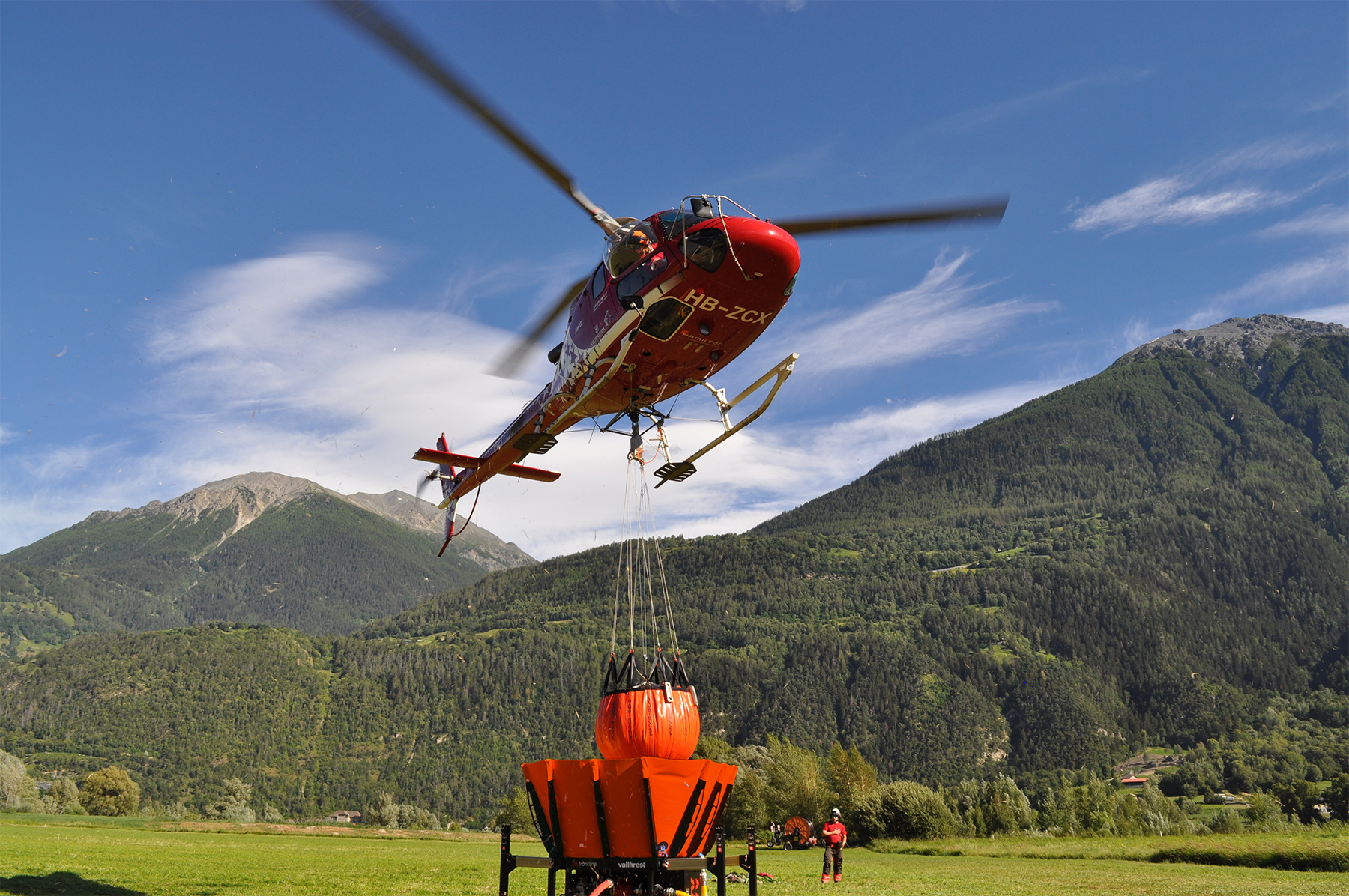

Helitransportable grabber
Textile sling, comprised of 4 strands, attached on one end with
metal rings, and a self-closing hook. For hoisting operations pursuant to DIN EN 1492-2 and
with EC certification.
Removable fire pump
397 l/m
28.8 bar
294 mH20
BH4-23 performance data
Maximum flow rate
Maximum pressure
Max. Gauge height
BH4-23 specifications
Power
Start
Weight
23 HP (3,600 rpm)
Manual and electric
78 kg
Suction
Supply
2” NPSH
1.5” NPSH
Flow
BH4-23 performance table
Pres-
Bar PSI l/min US GPM
24.1
13.8
3.5
349.5
200
50
200
360
394
58
95
104
