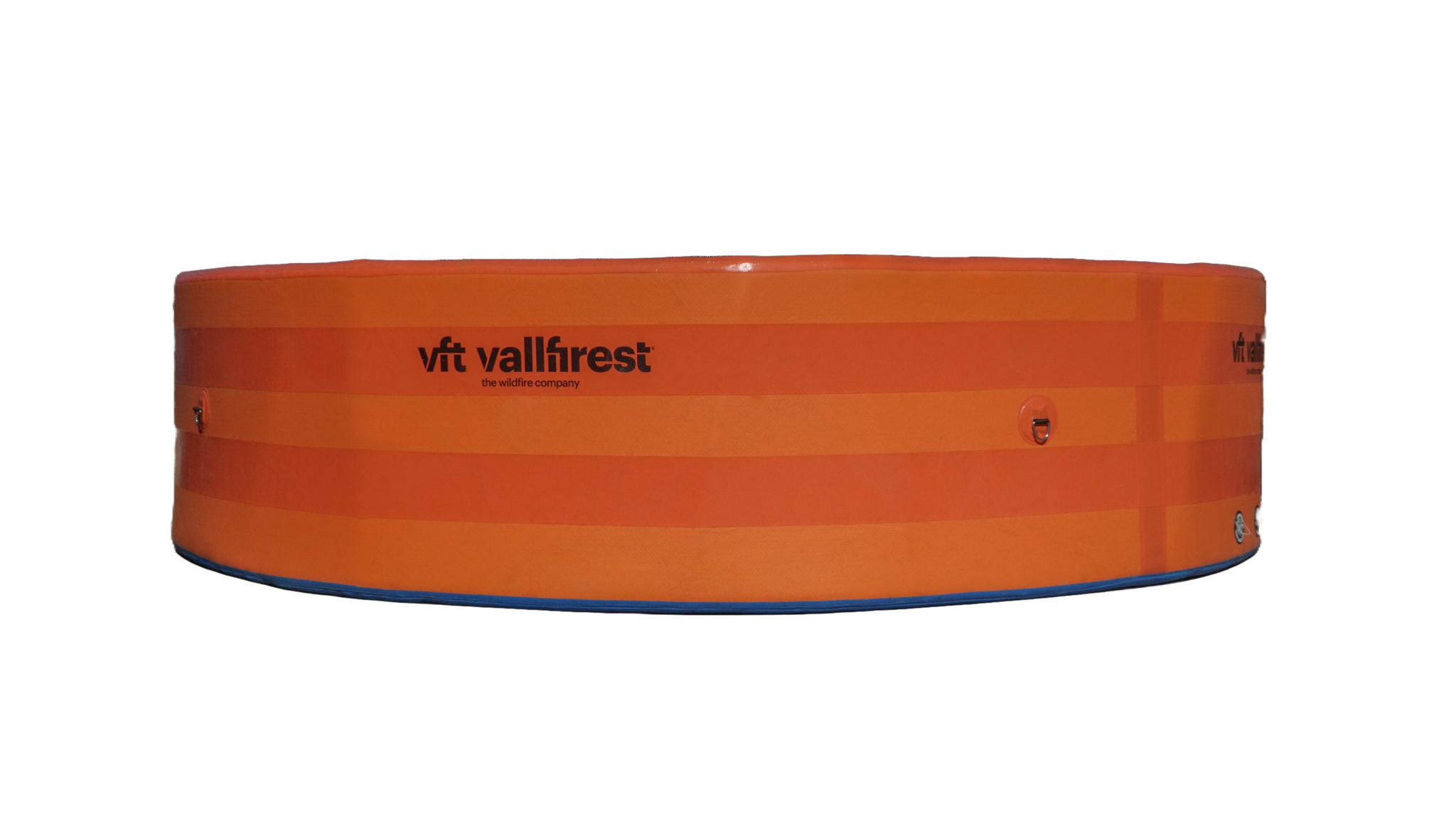

Vallfirest DES5705-30317 3170 Gallon Inflatable Tank

Tank Ships Freight, Please Call For Freight Quote

56,000 L inflatable tank
Vallfirest inflatable tanks are an advanced solution for improving logistics by creating
remote water points. The design makes for quick and easy assembly, reducing the
time and complexity of putting together traditional metal tanks all while being more
efficient than floating ring tanks.
Technical specifications
o Water capacity: 56,000 L (3170 gal)
o Material: 2600 g/m² PVC canvas and a double-layered base
o Product weight (empty): 173.5 kg (165.35 lb)
o Dimensions when folded: 170 x 113 x 90 cm / 67 x 44 x 35 in
o Dimensions when assembled:
Diameter: 6 m (20 ft)
Height: 2 m (6.5 ft)
Useful filling height: 1.7 cm (67 in)
Wall thickness (inflated): 10 cm (4 in)
o 1 ball valve with a 3 inch BSP thread.
o 1 drain cap with a 3 inch BSP thread.
o Two connection valves for inflation.
o Rings to secure it to the ground: 8 stainless steel rings distributed around the
outer perimeter.
Operational components
Inflation kit: Two 1200 W AC 220-240 V inflation pumps with a type C power source.
With this system, the tank fully inflates in approximately 4 min.
Repair kit: Includes two PVC patches for repairs.
Fixing kit for securing to the ground: Includes 6 corrugated metal pickaxes, 30 cm
long, with a galvanized finish, a mallet with a silicone-coated fiber handle, and 6
fixing straps with ratchets (100% polyester, elongation < 7%, 800 daN standard
tension force). The straps are 25 mm wide and compliant with standard EN-12195-2.
